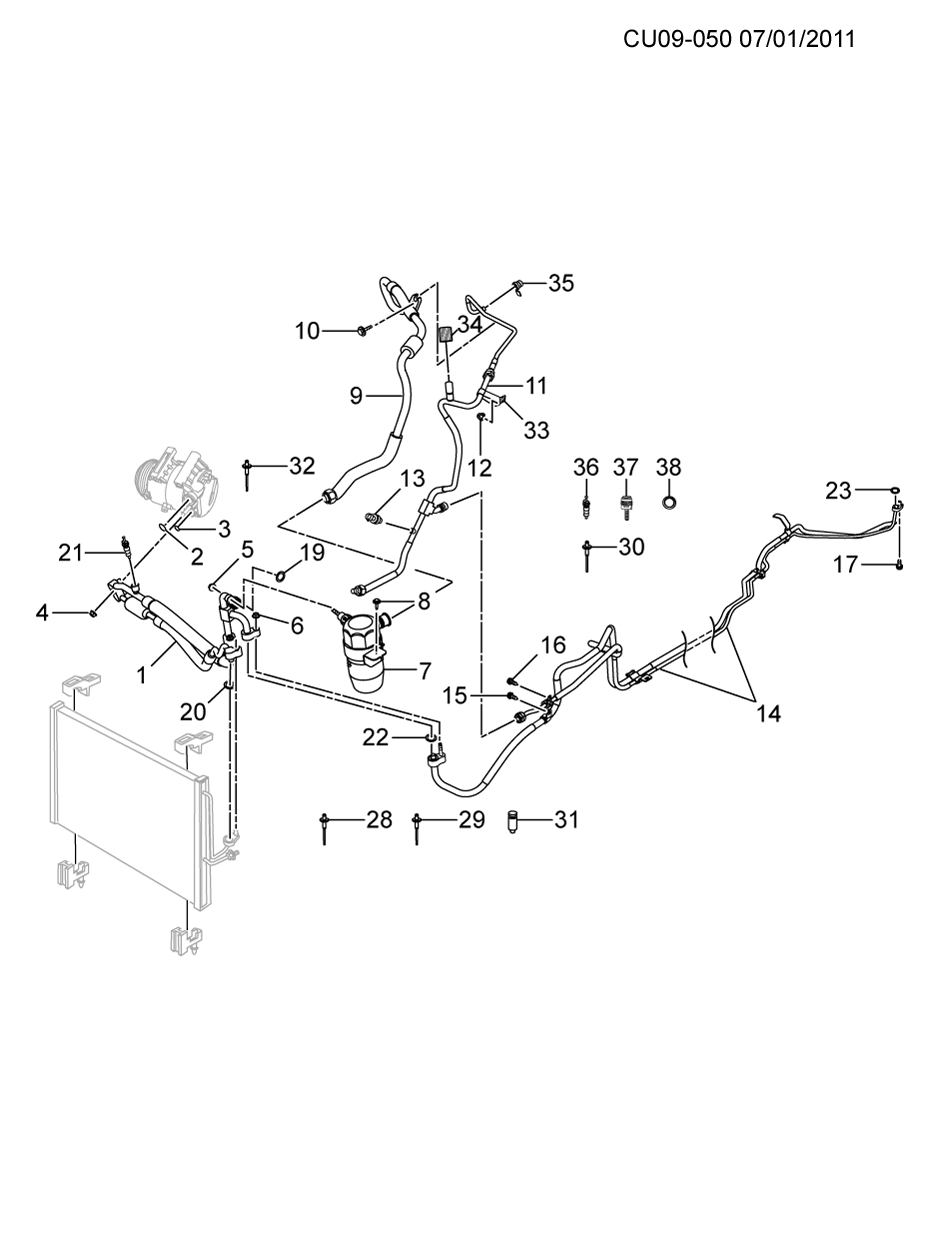

Hose, a/c compressor & condenser (incl. 2,3, 19-21)

【031】10273783 Bolt, stud (M5.1X1.6X25.0) (10.240)

【006】11516075 Nut (M6X1X7 mm) (hexagon flange lock) (3.342 in diameter)

【008】11609268 CABLE ASM-PARK BRK FRT SA

【032】11900419 Nut, exhaust pipe clamp (M5X1.6X14 mm) (12.944)

【003】13263310 Seal, air conditioner compressor hose (parts of 31) (1/2 ) (9.214)

【013】13587668 SENSOR A/C REFRIG PRESS

【020】52454645 SEAL,A/C REFRIG ORIFICE TUBE(O RING)(A/C REFRIG ORIFICE TUBE)(PART OF 15)(ACDelc

【017】52477907 A/c evaporator & reservoir

【009】5486316 Hose, air conditioner accumulator

【014】9001630 Hose, accessory a/c evaporator (incl. 22,23)

【001】9003667 Hose, a/c compressor & condenser (incl. 2,3)

【006】9004536 Nut, intake manifold (8mm diameter) (9.242)

【011】9023319 Tube, a/c evaporator (incl. 33-38)

【021】9033462 Valve insert

【007】9038515 Reservoir, air conditioner

【001】9046688 Hose, a/c compressor & condenser

【001】9049514 Hose, a/c compressor & condenser (incl. 2,3)

【022】9068927 Seal, air conditioner evaporator rear hose (o-ring) (6 parts) (9.222)

【038】93730357 Seal (o-ring), a/c condenser hose (part of 11)

【002】93733125 Seal, ac compressor & condenser hose (19 parts) (3 4)
