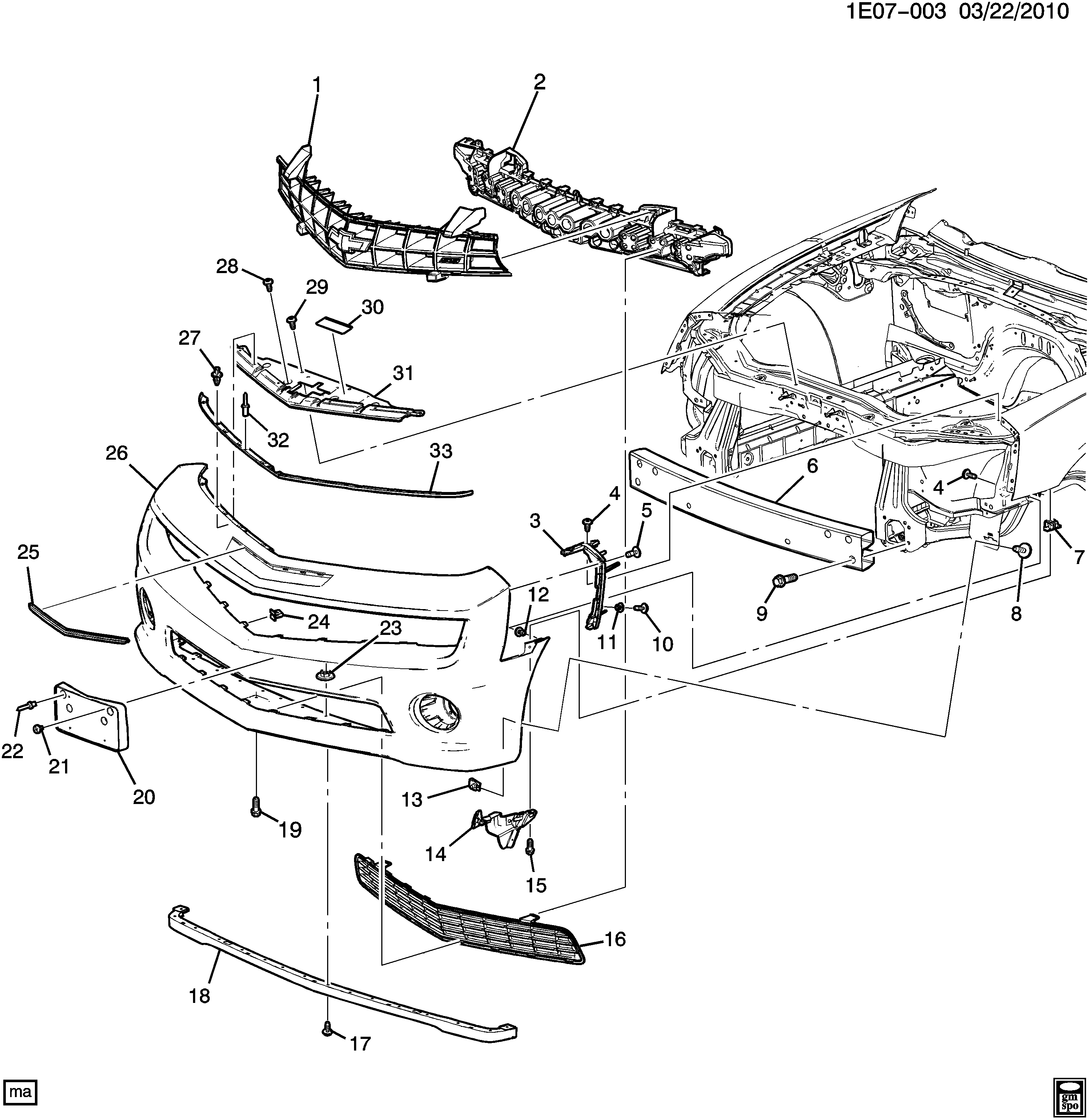

FASCIA,FRT BPR(INCLS 3,5,11)(PAINT TO MATCH)

【21】09423101 SCREW,TAP,M6.3X1.81X16,14.55 O.D.,7114M,PZ0R(RR LIC PLT)

【13】11513599 NUT,U-TYPE,M4.2X1.41,0.65-3.80 PNL THK,PZ(HTR & A/C CONT)(ACDelco #11513599)

【22】11516807 POP rivet, diameter 4.8, length 19.9, outer diameter 16, hole 5-5.25, clamping range 1-9, aluminum,

【8】11570637 BOLT

【27】11589289 Set, push-in, with 6.5 hole, plate thickness 2-4.5, nylon 6/6 PER GMP. PA66.0 (ambient gauge sensor

【9】11589407 BOLT, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT.(R/D HGE)

【28】11609341 Bolt, rear door lock (M6X1.0X16 mm) (length 22.85)

【15】11609465 Bolt, HWH, M4.2X1.41X18, 12.5 od, 6010 M, PS (for parts of 1) (8.977)

【7】11609952 Clamp-engine bottom deflector

【29】11610055 Bolt, M6X1X23 HWASH

【17】11610747 RIVET, RR BPR FASCIA

【24】16662182 CLIP,FRT GRL(12 X 14.5)(SLIDE ON)(0.63 SPRING STEEL)(10.056)

【30】20972749 Mark (43 parts), a/c refrigerant and fan blade warning (0.600)

【5】92139150 Rivet, fr bumper

【16】92218015 Grille (black), lower front

【20】92218025 BRACKET,FRT LIC PLT(BLACK)

【18】92234404 Rivet, fr bpr bar

【33】92238867 MOLDING,FRT BPR FASCIA BLACKOUT

【33】92238937 MOLDING,FRT BPR FASCIA BLACKOUT

【25】92242525 Grille (black), front upper

【2】92243309 ABSORBER,FRT BPR FASCIA ENGY

【3】92243311 REINFORCEMENT,FRT BPR FASCIA(PART OF 24)(INCLS 11)

【14】92243317 REINFORCEMENT,FRT BPR FASCIA LWR(INCLS 11)

【1】92243533 GRILLE,FRT(BLACK)(LESS EMBLEMS)

【31】92244886 SUPPORT,FRT BPR FASCIA UPR(INCLS 27)
