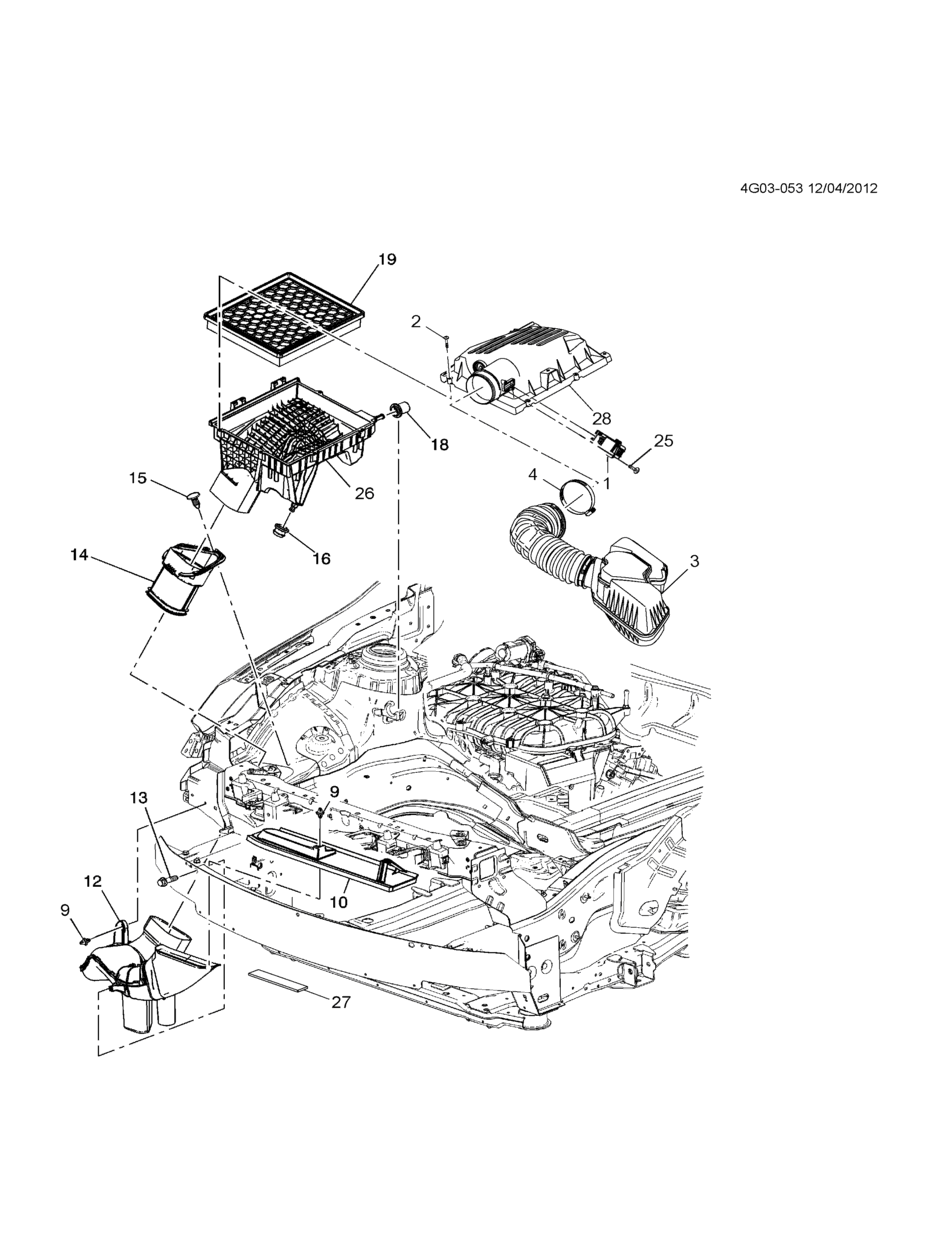

AIR CLEANER

【015】11561645 Nut (M6X1.0MM) (6 ), cowl

【015】11571109 Pin (2 pieces, pull length 33.58 maximum) (12.944)

【009】11589291 Clamp, eng harness (press) (black) (34.8) (6 )

【002】12800518 Bolt M6X2.5X31

【013】13278397 Bolt, air intake pipe (7.833)

【025】13306966 Bolt, air flow sensor

【027】13318762 Air cleaner mounting

【014】13325924 Duct ctr air intake

【026】13335601 Case, air cleaner lower

【012】13343580 Tube (to be used before 2011-06-13)

【001】15865791 Air flow sensor

【028】22754183 Case, air cleaner, upper

【003】22761486 Pipe, air cleaner (incl 22)

【004】22953190 Gasket, air cleaner opening duct

【001】23262343 Sensor, air flow (incl. 17) (companion connector 13583440,8 way socket connector) (AC-DELCO #2326234

【010】25998536 Deflector, intake

【016】26356064 Spacer, air cleaner

【019】55560894 AIR CLEANER

【018】9202941 Spacer, air (rr) (3.405)

【019】93720389 AIR CLEANER
