Grille (44 part) (black) (l)
Part number: 94781666
Brand: Chevrolet

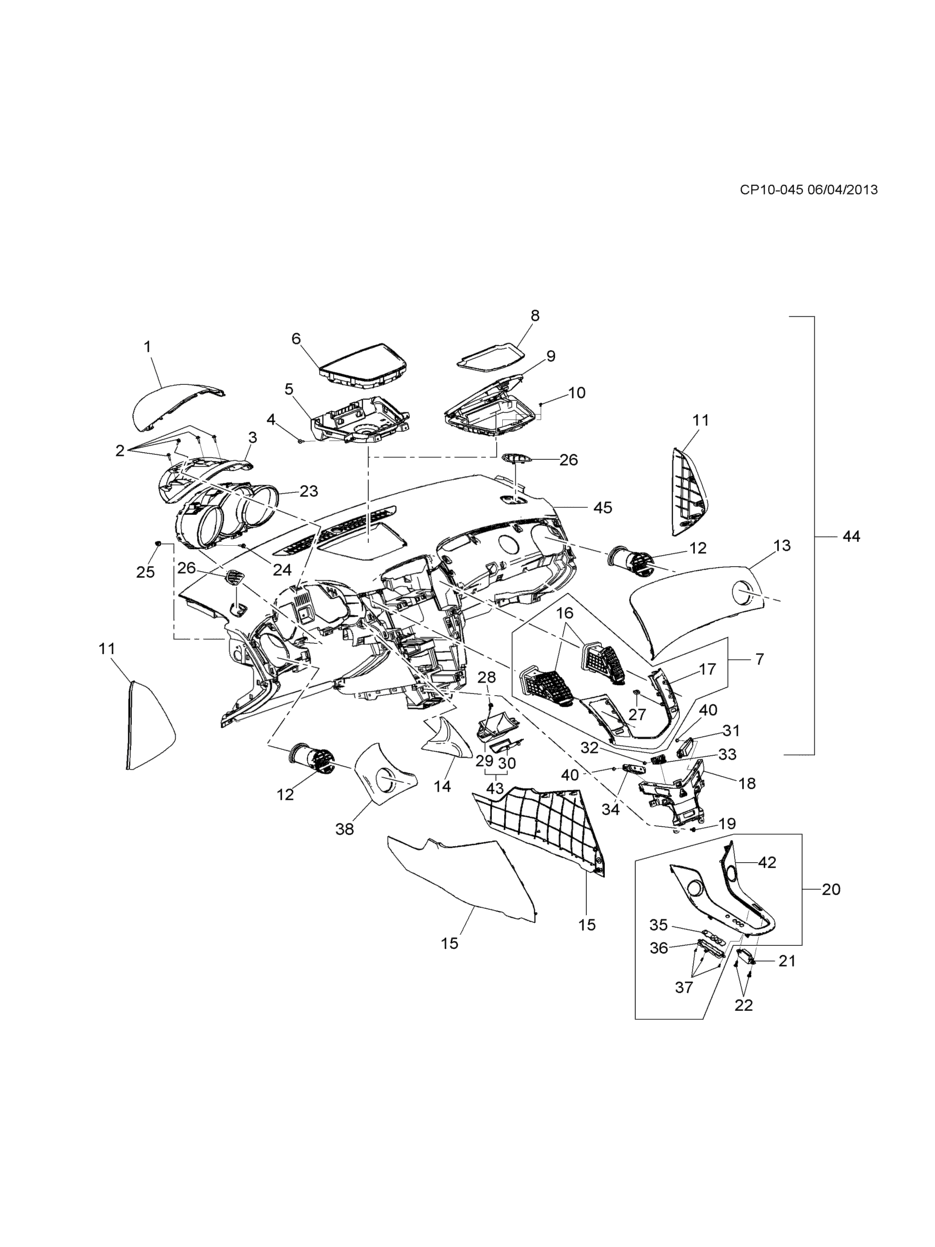

Related parts
【025】11561629 Nut (copper) (M4.2X1.41 mm) (push-in nut) (09.786)
【028】11570498 BOLT, HX HD W/FLAT
【040】11609459 Bolt (M4.2X1.4X13), sun (8.900)
【043】26671779 Tray, front floor console storage (incl. 29,30)
【038】9059165 Finisher (incl. 12) (44 of the parts)
【014】9059169 Mldg assy, l
【032】94520168 Bolt, auxiliary switch cover (10.230)
【004】94520393 Bolt, instrument panel harness fusible link (M4.8X1.6X16 mm) (6 ft)
【029】94564454 Tray (43 parts) (black) (tray only)
【030】94564460 Bush, front floor console storage tray (black)
【042】94565193 Cover (2nd design see 95326573) (old piece with instrument panel multiple power
【042】94565204 Lid, shift control lever
【011】94565887 Cap, instrument panel finish (black)
【011】94565888 Cap, instrument panel outer trim
【011】94565891 Cap, instrument panel outer trim
【007】94567907 Mldg-ctr facia (2009-03-11 for front use) (2nd for design see 94567909) (incl. 16,17, 27)
【007】94567908 Mould, instrument panel center upper (color: visual check) (incl. 16,17, 27)
【007】94567909 Mldg assy-c/pad ctr (incl. 16,17, 27)
【044】94568511 Dashboard (incl. 4,5, 6,8, 9,10, 13,24, 26,38, 45)
【026】94781667 Cut-off, side window
【026】94781669 Air port (part of 44) (9.780)
【023】94824441 Meter comp
【023】94824442 Meter comp (2nd design see 95476871)
【018】95023029 Panel (black), instrument panel attachment
【018】95023030 Panel (black), instrument panel attachment
【023】95051430 Combination meter (label 95051430) (2nd design see 95059806)
【023】95080010 Meter comp
【023】95080029 Meter comp
【023】95080030 Meter comp
【023】95086278 Combination meter (label 95086278) (1st design see 95472842)
【044】95104255 Dashboard (incl. 4,5, 6,8, 9,10, 13,24, 26,38, 45)
【045】95104260 Panel (44 parts)
【045】95104265 Panel (incl 4,7, 8,29)
【038】95104267 Finisher (incl. 12) (44 of the parts)
【013】95104268 Finisher (incl. 12) (44 of the parts)
【038】95104270 Finisher (incl. 12) (44 of the parts)
【013】95104271 Finisher (incl. 12) (44 of the parts)
【001】95104274 Finisher, instrument panel
【001】95104275 Finisher, instrument panel
【038】95218115 Finisher (incl. 12) (44 of the parts)
【014】95218117 Mldg (drivers) (black)
【033】95282258 Switch, hazard warning
【042】95326573 Cap (part 20), a/t shift
【042】95326584 Cap (part 20), a/t shift
【003】95365373 Finisher, instrument, lower
【023】95472838 Combination meter (label 95472838) (2nd design see 95086280)
【023】95472842 Combination meter (label 95472842) (2nd design see 95086278)
【023】95476871 Combination meter (label 95476871) (2nd design see 95059804)
【012】95488446 Ventilator, instrument panel, outer (qtr part)
【012】95488447 Ventilator, instrument panel, outer (qtr part)
【015】95919011 Finisher, instrument panel lower (black)
【015】95919015 Finisher, instrument, lower
【015】95919016 Finisher, instrument, lower
【016】95919070 Ventilator assy-crash pad ct
【016】95919071 Ventilator assy-crash pad ct
【012】95919076 Ventilator, instrument panel, outer (qtr part)
【012】95919077 Ventilator, instrument panel, outer (qtr part)
【038】95920321 Finisher (incl. 12) (44 of the parts)
【013】95920324 Finisher (incl. 12) (44 of the parts)
【017】95920358 Mldg (7 parts), center (silver) (mldg only)
【007】95920368 Finisher, instrument panel (incl. 16,17, 27)
【020】95947043 Cover (incl. 35,36, 37,42)
【020】95947045 Cover, a/t control
【027】95965161 Clip (7 parts) (10.252)
【023】95966591 Combination meter (label 95966591) (2nd design see 95059803)
【023】95966592 Combination meter (label 95966592) (2nd design see 95471618 and 3rd design see 95059805)
【042】95978852 Lid, manual transmission control lever (silver)
【021】95995763 Manifold-instrument panel
【031】96828404 Cap, seatbelt warning display hole
【016】96829367 Ventilator assy-crash pad ct
【016】96829368 Ventilator assy-crash pad ct
【035】96931640 Lens, a/t shift indicator lamp
【036】96931641 Housing, a/t shift indicator
【037】96931642 Bolt (20 parts), automatic transmission shift control indicator housing
【034】96936168 Switch, door lock & unlock
【006】96965001 Lid assy., instrument upper (44 of the parts)
【008】96965039 Pad assy-c/box upr (44 parts) (black)
【008】96965040 Pad assy., instrument panel upper box
【038】96965222 Finisher (incl. 12) (44 of the parts)
【038】96965238 Finisher (incl. 12) (44 of the parts)
【038】96965239 Finisher (incl. 12) (44 of the parts)
【014】96965252 Mldg (drivers) (blue)
【009】96989973 Box (44 parts), instrument panel upper
【013】96996621 Finisher (incl. 12) (44 of the parts)
