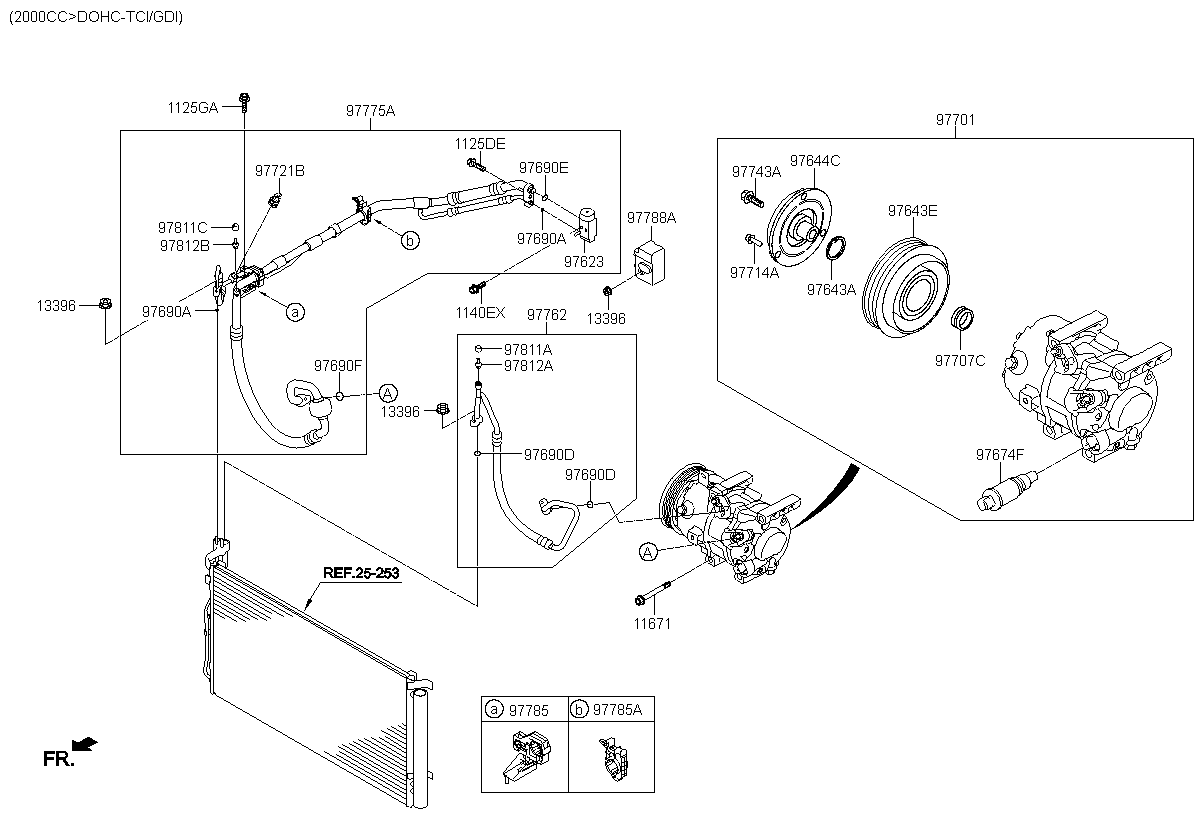

COMPRESSOR ASSY
Part number: 97701-B3000
Brand: Kia
Related parts
【1125GA】1125406306B BOLT(W/WASHER)
【1125DE】1129308206B BOLT-WASHER ASSY
【1140EX】1140306457K BOLT
【11671】1163008006A BOLT
【13396】1339606007K NUT-FLANGE
【97623】97626C3000 VALVE-EXPANSION
【97643E】976433R000 PULLEY ASSY-A/CON COMPRESSOR
【97643E】97643A5500 PULLEY ASSY-A/CON COMPRESSOR
【97643E】97643C3000 PULLEY ASSY-A/CON COMPRESSOR
【97644C】976443R000 DISC & HUB ASSY-A/C COMPRESSOR
【97643A】976453K120 RING-SNAP
【97743A】9764733300 BOLT
【97674F】976743M001 Valve-control
【97690A】9769034310 O-RING
【97690F】9769034330 O-RING
【97690E】9769034340 O-RING
【97690D】9769034350 O-RING
【97701】977013V110 COMPRESSOR ASSY
【97701】97701C3000 COMPRESSOR ASSY
【97707C】9770733300 Seal-a/c compressor shaft
【97714A】977143R000 BOLT
【97721B】977213K000 Sensor assy-pressure
【97762】97762C1000 HOSE-DISCHARGE
【97762】97762C1100 HOSE-DISCHARGE
【97762】97762C3000 HOSE-DISCHARGE
【97762】97762D6000 HOSE-DISCHARGE
【97762】97762D6100 HOSE-DISCHARGE
【97762】97762D6200 HOSE-DISCHARGE
【97775A】97775D6000 PIPE ASSY-RETURN
【97775A】97775D6100 PIPE ASSY-RETURN
【97775A】97775D6200 PIPE ASSY-RETURN
【97785】97785C1000 CLIP-AIRCON COOLER LINE
【97788A】977882H000 Heat cover-exp v/v
【97811A】9781139100 CAP-CHARGE VALVE, LOW
【97811C】9781139200 CAP-CHARGE VALVE, LOW
【97811C】97811H9000 CAP-CHARGE VALVE, LOW
【97812A】9781222300 Core-charge
【97812B】978122L000 Core-charge
