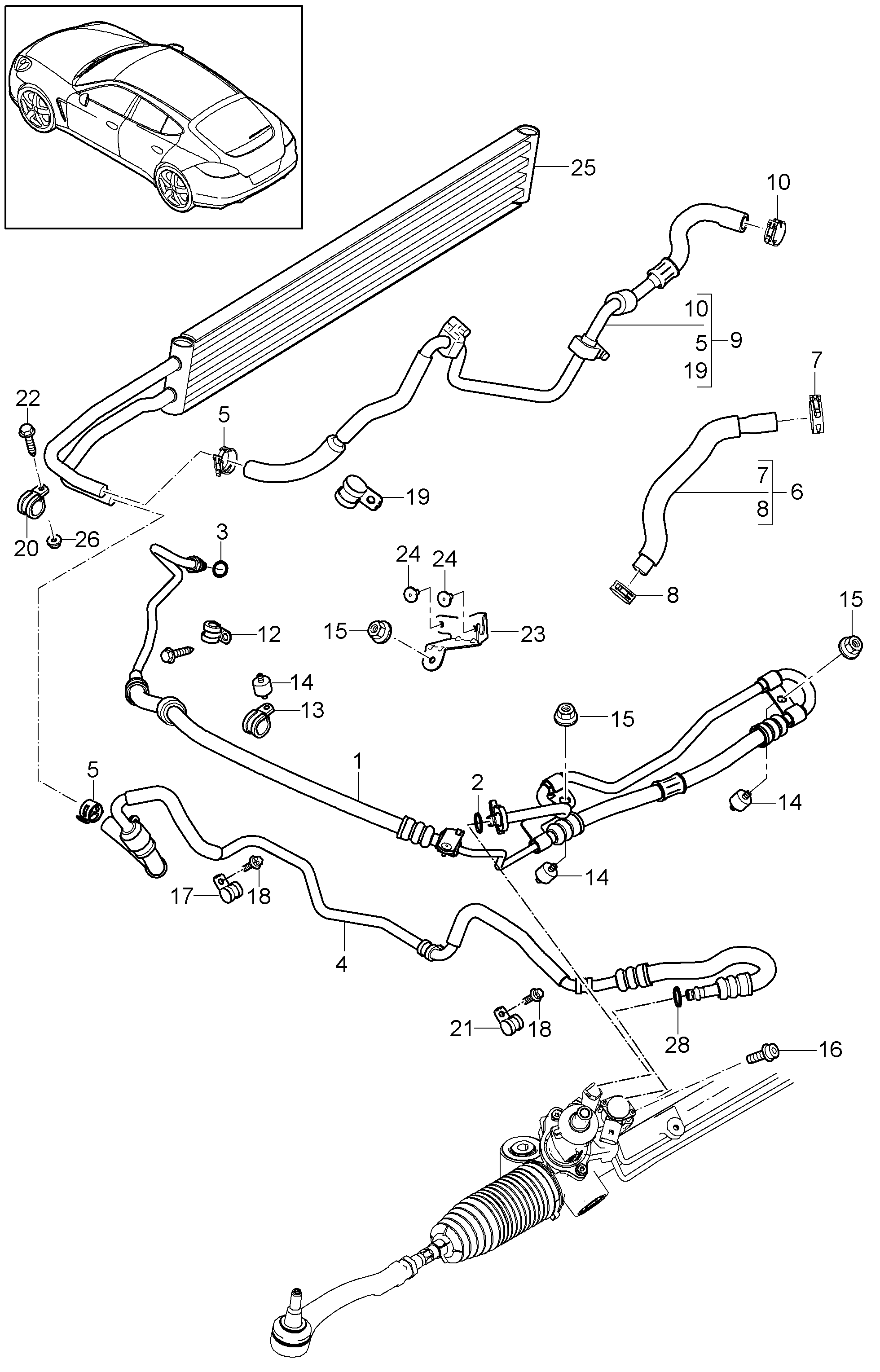

O RING

【26】90037701001 NUT,HEX 6MM

【22】90037803501 SCREW

【18】90037803601 SCREW

【14】95534363810 RUBBER MOUNTING/A4/A6/A8/2009

【6】97034723102 Hose, oil inlet

【4】97034723707 Pipe, return

【4】97034723708 Pipe, return

【25】97034723902 OIL COOLER-ENG.OIL-VW/SKODA

【25】97034723903 OIL COOLER-ENG.OIL-VW/SKODA

【25】97034723950 OIL COOLER-ENG.OIL-VW/SKODA

【9】97034724102 Pipe, return oil cooler

【1】97034724305 Part, fuel pump outlet

【1】97034724307 Pressure line

【1】97034724308 Pressure line

【1】97034724505 Part, fuel pump outlet

【23】97034726303 BRACKET,HARNESS

【24】99919041401 RIVET-BLIND

【20】99951108002 CLAMP

【17】99951111401 CLAMP

【12】99951111603 CLAMP

【21】99951125801 CLAMP

【5】99951265209 CLAMP

【10】99951265409 CLAMP

【8】99951265609 CLAMP

【7】99951265809 CLAMP

【2】99970125240 O-ring pressure line match only: pressure line (assy) no more parts to be used here

【2】99970125241 O-ring pressure line match only: pressure line (assy) no more parts to be used here

【3】99970125340 O RING

【3】WHT005161 O RING
