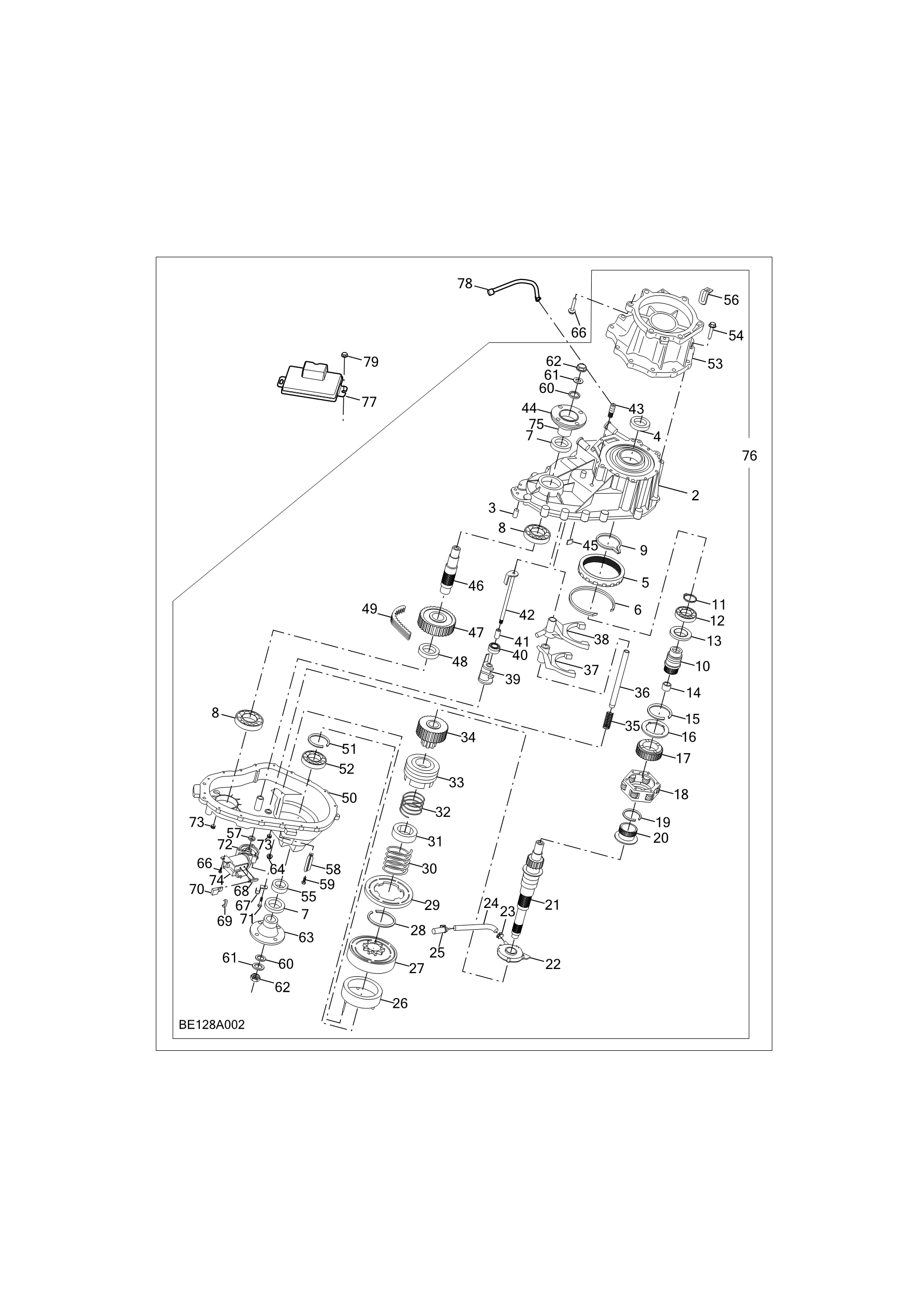

TRANSFER ASSY

【79】B00003507 Nut-switch wire to starter

【66】B00004983 Bolt/stud

【77】C00054088 Control unit, transfer

【2】C00090168 Case, transfer fr

【4】C00090171 Oil seal, transfer input shaft

【7】C00090174 Oil seal, transfer front output shaft

【46】C00090175 Bearing, transfer output shaft, front

【21】C00090188 SHAFT, TRANSFER OUTPUT, REAR

【34】C00090201 Sprocket, transfer output

【38】C00090207 Fork sub-assy, gear shift guide shaft deceleration shift

【44】C00090213 Disk, transfer front output shaft

【47】C00090216 Sprocket, transfer front output shaft passive

【49】C00090218 Chain, transfer sprocket

【50】C00090219 Case, transfer, rear

【57】C00090223 Oil seal, transfer rear housing

【60】C00090226 O/SEAL,T/F RR OUTPUT SHAFT

【68】C00090232 Snap-transfer motor mtg

【72】C00090236 Motor sub-assy, transfer rear housing shift
