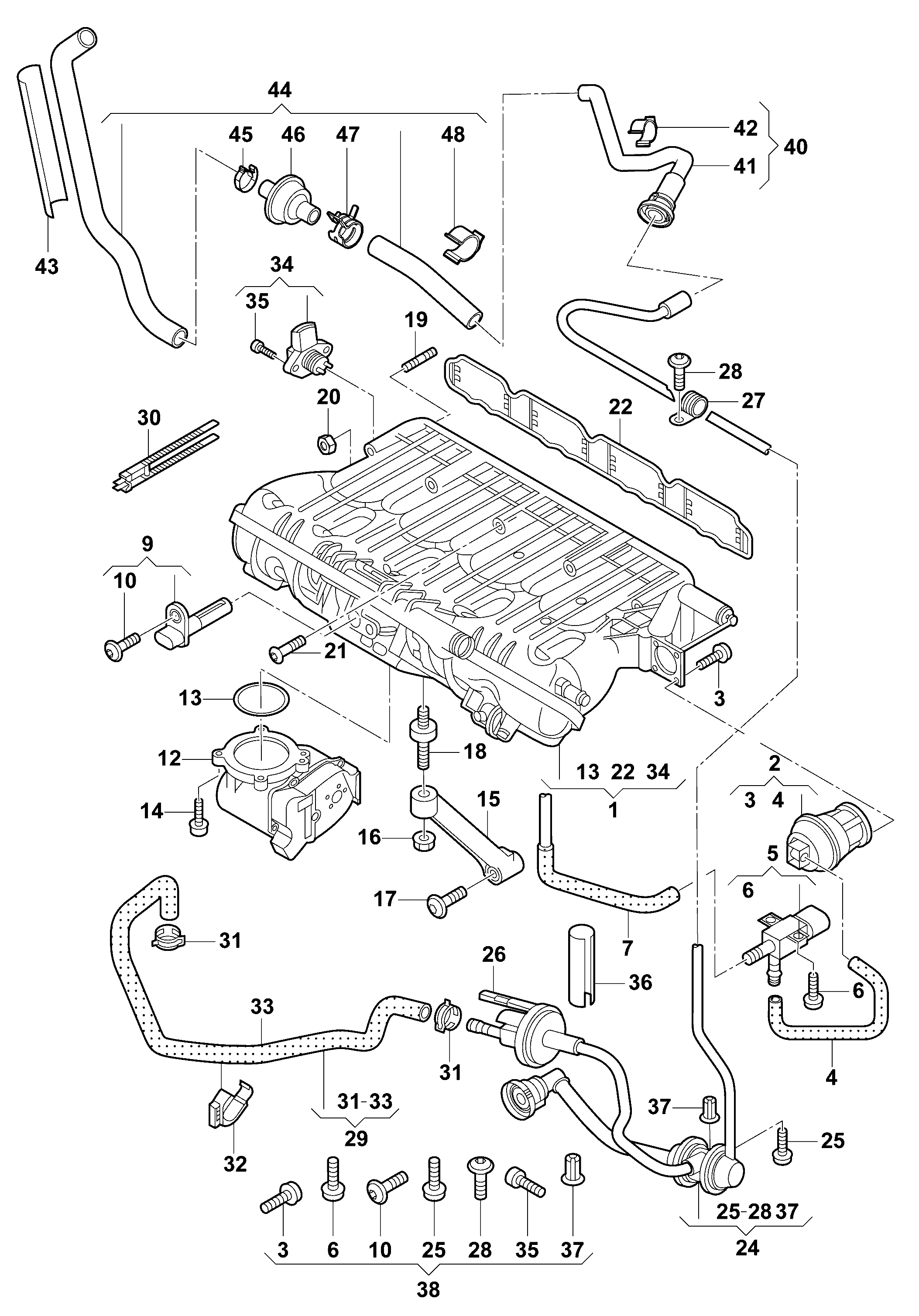

HOSE-CONNECTION

【5】037906283C Solenoid valve##

【46】058905291N VALVE-NON RETURN

【9】06B905379D Sensor assy-temp

【18】06F121273A RUBB MOUNT

【9】06J133241AB HOSE-CONNECTION

【7】06J133241M HOSE-CONNECTION

【38】06J198212A Bolt set, for air intake pipe & mounting

【34】07L907386A 06K907386D

【34】07L907386B 06K907386D

【32】1C0422705B CLIP

【48】1J0955846 CLIP,CAP END

【30】4A0820199 Cable cable, double lock

【22】L06F129717D Grommet

【12】L06F133062AB Joint, throttle

【12】L06F133062R Joint, throttle

【13】L06F133073D Grommet

【15】L06H129723F BRACKET ASSY-AIR INTAKE

【1】L06J133185EE Hose, air intake

【1】L06J133185EF Hose, air intake

【40】L06J133518G HOSE-CONNECTION

【44】L06J133781BF Hose set with clips

【44】L06J133781BG HOSE-CONNECTION

【29】L35D133366 HOSE-CONNECTION

【20】LN01508210 Nut, hexagon

【31】LN90686701 Clip-band

【45】LN90687001 Clip-band

【21】LN91089601 BOLT

【27】N0206096 CLIP

【33】N10407001 CLIP

【16】N10609203 Nut, hexagon

【14】N10626101 BOLT

【17】N10649401 SCREW

【28】N10721401 Bolt, oval head pnl

【35】N90936503 Bolt, hexagon no.1

【47】N90986501 Clip-band

【25】N91085801 Bolt, oval tapping (combination)

【19】N91180801 STUD-10X41
