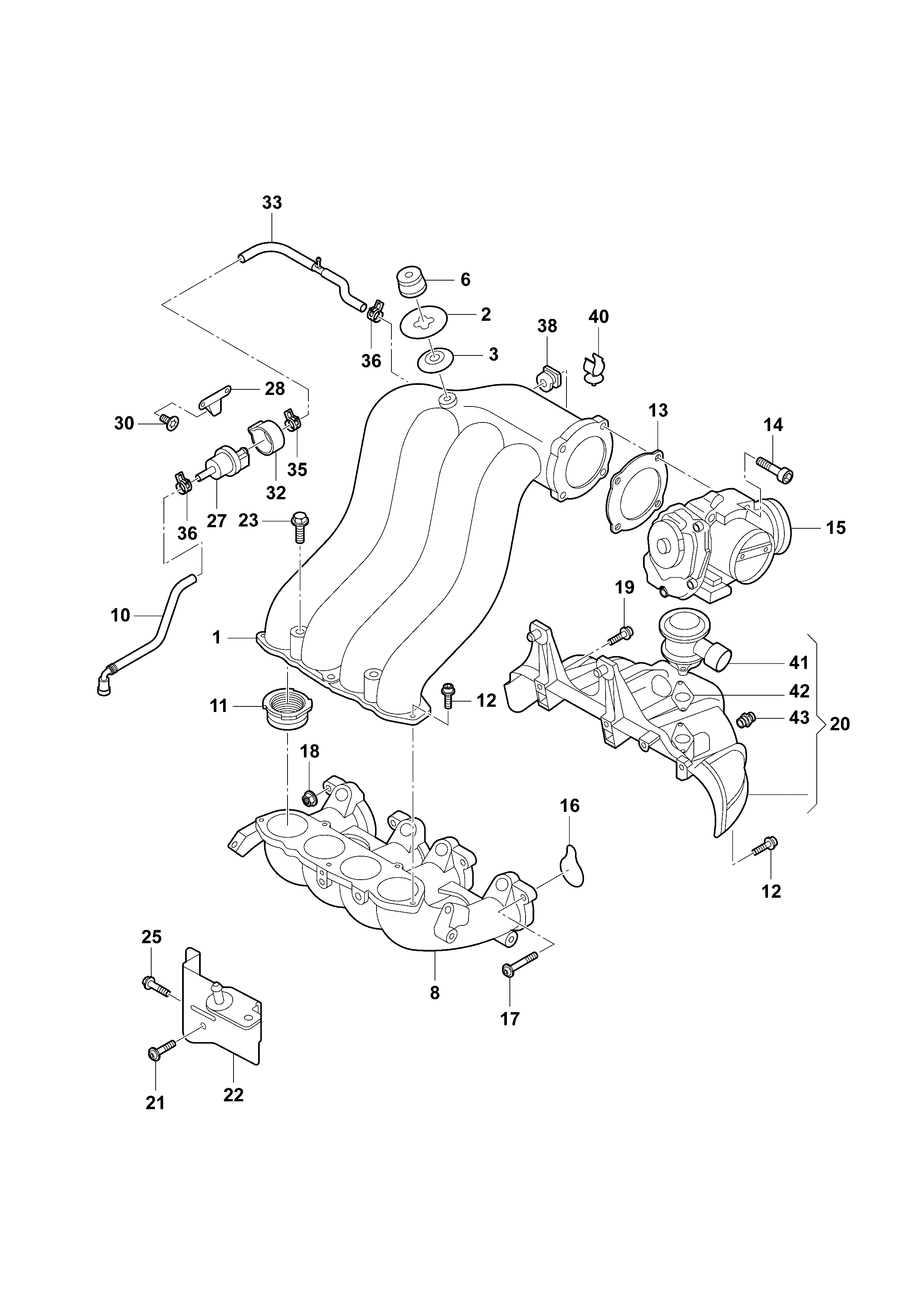

HOSE-CONNECTION

【32】051133459A Ring, support

【2】06A129530 Valve

【16】06A129717D Grommet

【11】06A129717J Grommet

【3】06A129720 PORSCHE CAYENNE WATR RSVR CVR

【13】06A129748A Grommet

【15】06A133062AD Throttle control unit For belt speed adj The car model of the unit

【8】06A133206AM Hose assy-air intake lwr

【33】06A133366T HOSE-CONNECTION

【38】06A133459 GROMMET

【28】06A133519 Bracket-valve

【1】06G133185B Hose, air intake

【1】06G133203G Fitting-air intake pipe upr Porsche panamera:

【27】L1C0906517A Valve

【35】LN10196901 CLIP

【12】LN90500605 SCREW

【36】LN90686701 Clip-band

【18】N01508315 Nut, hexagon

【25】N0195433 BOLT

【21】N10225401 SCREW

【17】N10226001 SCREW

【19】N10242602 SCREW

【40】N10470501 BRKT-HOSE

【14】N10582103 Bolt, semi-circular countersunk, w/inner

【30】N90817003 Bolt, hexagon no.1
