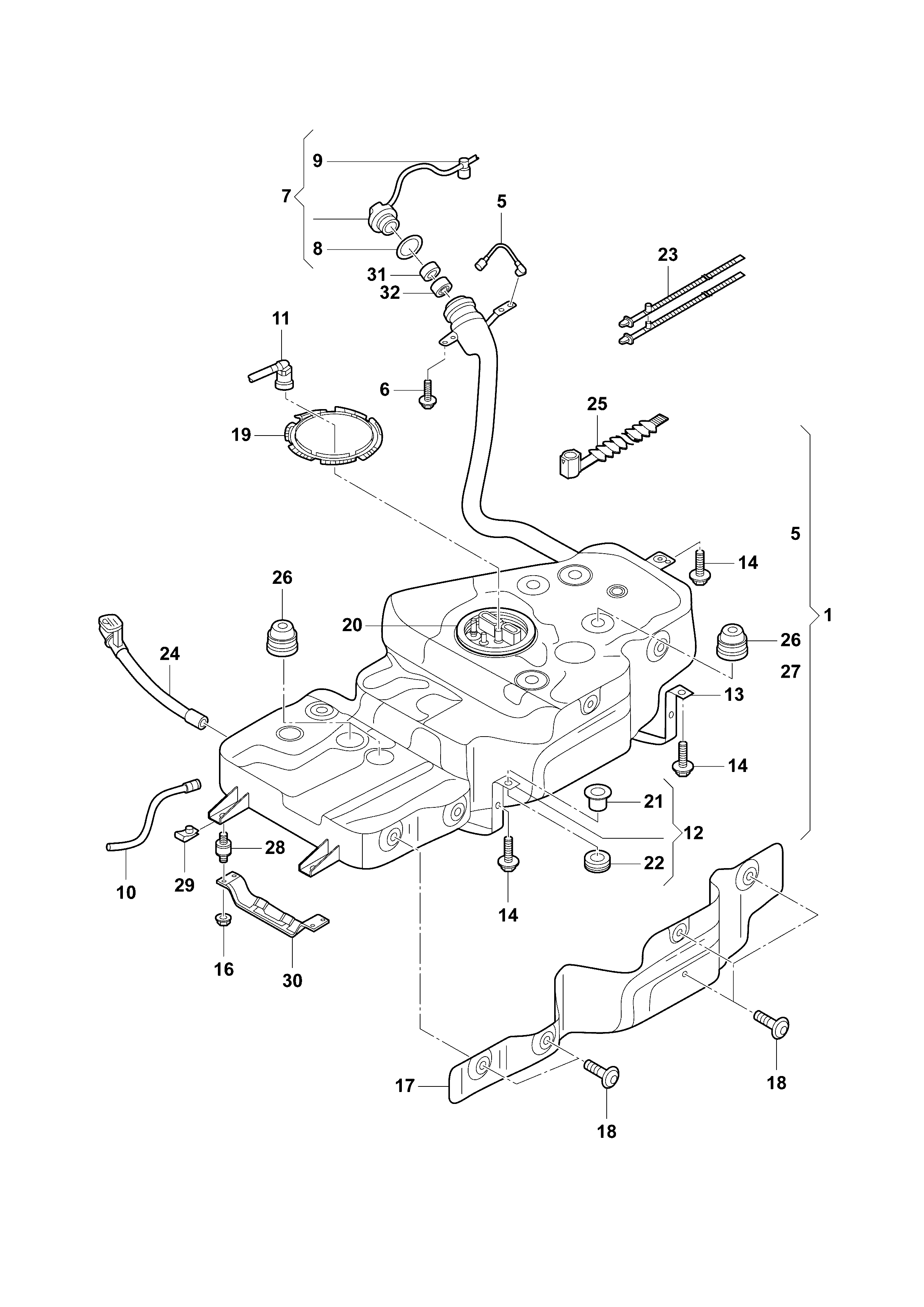

Tank assy-fuel

【9】1J0201250 CLIP

【8】1K0201557 Seal ring D-24.11.2009

【23】4A0820199 Cable cable, double lock

【5】8E0201142A Earth wire

【7】8K0201550A Cap, fuel tank

【7】8K0201550L Tank, fuel Cover D-12.01.2015

【26】8R0201274 Plate, absorber

【17】8R0201308D HEAT SHIELD

【12】8R0201653 Belt assy-tension

【13】8R0201653A Belt assy-tension

【28】8R0201889 Mounting rubber

【7】8T0201550 Tank, fuel Cover D -26.07.2010

【16】N10340103 Nut, hexagon

【6】N10416003 Six angle combined bolt

【14】N10570301 BOLT

【29】N90112202 Nut-insert

【25】N90643701 Band, with bracket, for cable ties:

【18】N91185101 Bolt assy, semi Hexagon insert
