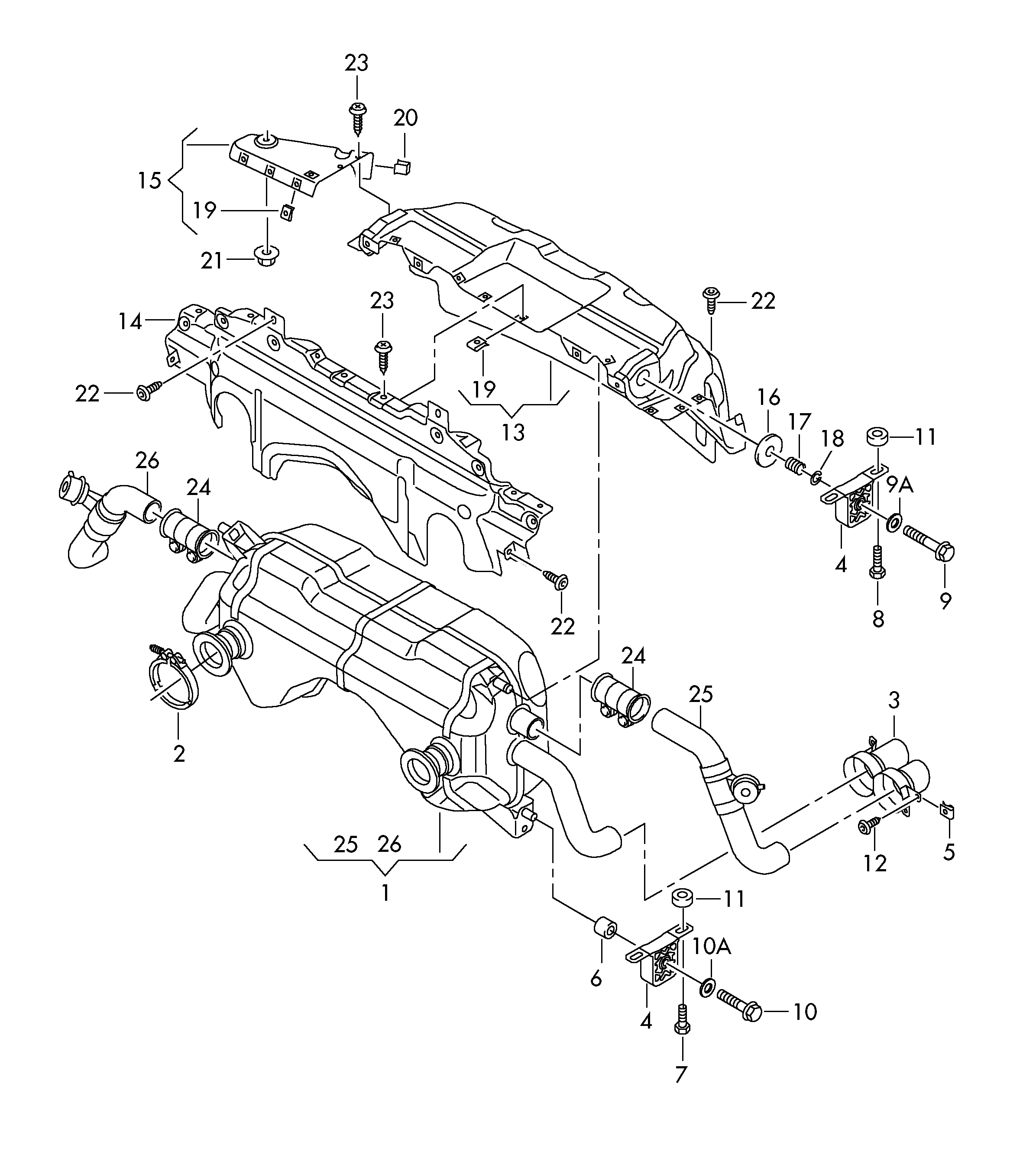

HEAT SHIELD

【24】1K0253141G 1K0253141E

【24】1K0253141N 1K0253141E

【1】420251051HX Silencer D-MJ 2011

【2】420251143 CLIP

【6】420251198A SPACER SLEEVE

【3】420251237 Pipe, exhaust, tail D -MJ 2010

【3】420251237D Pipe, exhaust, tail D-MJ 2011

【3】420251238 Pipe, exhaust, tail D -MJ 2010

【3】420251238D Pipe, exhaust, tail D-MJ 2011

【4】420251303 RETAINER FOR EXHAUST SYSTEM

【14】420825613B HEAT SHIELD

【15】420825689B HEAT SHIELD

【8】N01024426 Bolt, hex

【10A】N01152721 WASHER

【18】N0124501 RETAINING WASHER

【19】N0154457 Nut-insert

【20】N10491001 CLIP

【10】N10680201 Bolt, w/belt multigear (double), hexagon

【5】N90627102 Nut lock

【5】N90688702 Nut-insert

【21】N90745001 Nut, hexagon

【23】N90775001 Bolt, hexagon no.1

【12】N90898102 Bolt, hexagon

【12】N91096603 BOLT

【22】WHT003841 Bolt, obk head
