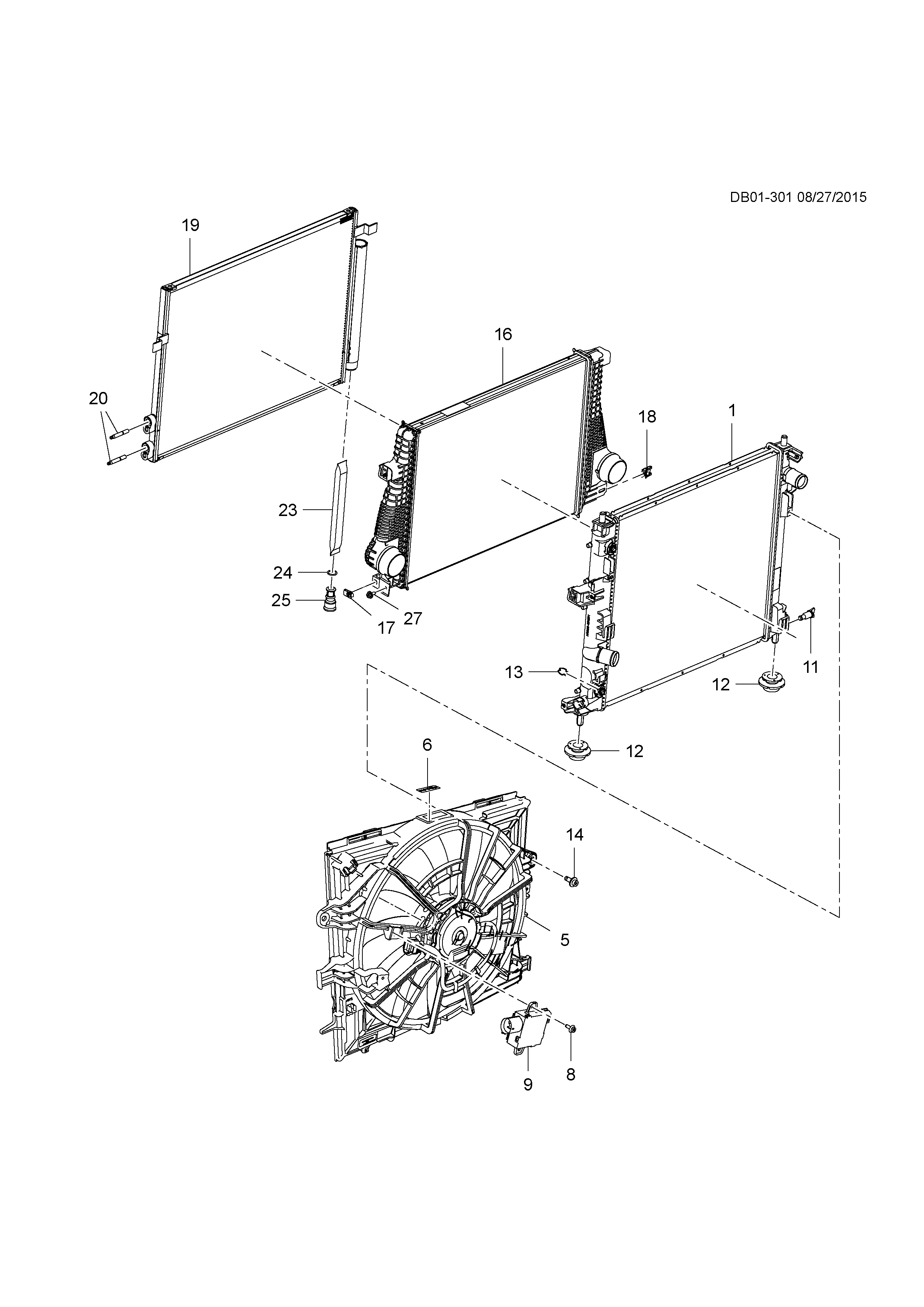

Fan, eng cooling (350w motor) (incl 6, 8, 9)

【017】11507067 Nut (M6X1.0) (6 ), radiator mounting plate

【027】11516589 Bolt, hex. headpin with conical spring washer, M6X1X30, 29 threaded, outer diameter 17,9.8,7114 M, Z

【027】11519383 Bolt, a/c evaporator tube (M6X1.0X23MM) (washer diameter 16.8) (8.900)

【018】11546395 Nut, radiator (RPR) (20MM lh for ECF) (part of 1) (M6X20X26MM) (3.373)

【020】22868960 Bolt, a/c condenser stud (1 parts) (M8X1.25X37/M8X1.25X19) (1.240)

【012】22966133 Spacer, radiator

【019】23452331 Condenser, air conditioner (including 23-28) (AC-DELCO #15-63814)

【009】23506648 Fan cont module (with 4 way connector 19115593 & 2 way connector 88953307)

【001】84352728 Radiator (27MM GSR with tank cooler & no sensor) (including 11-13)

【016】84356897 Radiator, w/c cooler (incl. 17,18)
